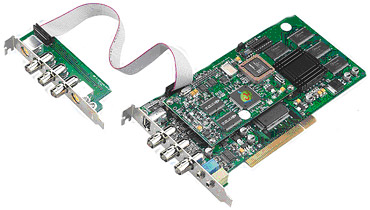

DVD PLUS 3070
PCI H/W Solution for DV
DV MPEG II, which delivers unrivaled video quality, performance and compatibility. DV MPEG II encoder is suitable for creation of VCD or DVD compatible video clips. Produces MPEG I and MPEG II video, audio or mixed video/audio files from virtually any video source , such as DV Camcorder , VHS, S-VHS . As Digital Video is a trend in the future,

Aviosys DV MPEG II provides a complete easy way to integrate DV/IEEE1394 solution for Digital Video transmission to reduce your time-to-market and development costs.

Specification
PCI H/W Solution for DV Real-Time encode to MPEG2&1
Less time and lower system require to process program
Digital Video Quality Out to TV and Professional Device
Auto Detact video source: NTSC / PAL / SECAM
Contol DV to play , stop, FF, RW,.
YUV (YCbCr) component & S- Video In & Out
Playback editing video to TV and other dispalys
Capture , Edit and Burn all in one

Dimension
Size: 95 *205mm & 40*100mm
Weight:265gm (card only)
Power requirement: 5V/ 0.8A
Plug and Play PCI 2.1 bus compliant design
6 Pin IEEE 1394 / DV connector
6 BNC for YUV In & Out
6 BNC / Composite transfer jacks for Video I n & Out
S-Video In & Out for Y/C video port
Stereo audio In & Out by Mini-phone Jack

System Inquirment
Intel Pentium II MMX
64MB system memory
32-Bit PCI Slot
Windows98SE/2000/ME/XP
CD-R/W driver or DVD R/W( option)
Video Input Source
